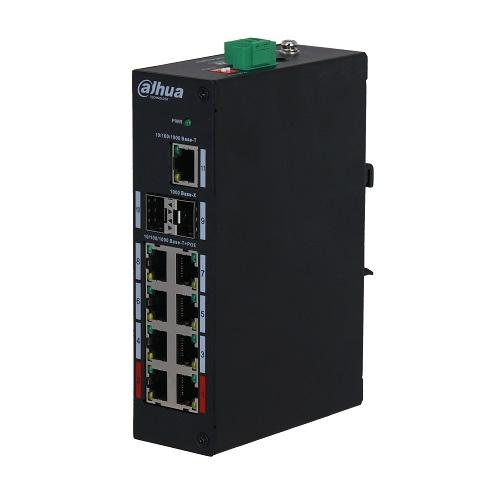

PoE šakotuvas 8*1000Mbps PoE portai, Uplink 1000Mbps, 120W

Features:

• 11-port unmanaged gigabit switch with 8-port PoE.
• 8-pin simultaneous PoE power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time.
• All-giga ports.
• Wide working temperature.
• Long distance PoE.
• The red port supports the IEEE802.3bt and the Hi-PoE standards.
• Intelligent PoE controls over power consumption and offers real-time monitoring.
• BT 90W.
• Supports wall-mount installation.
• Supports IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3az, IEEE802.3x standards.
• Conforms to IEEE802.3af and IEEE802.3at power supply standard.

Technical Specifications:

• Model PFS3211-8GT-120.
• Ethernet Port: RJ-45 8x 10/100/1000Mbps (PoE); SFP 2x 1000Mbps (uplink); RJ-45 1x 10/100/1000 Mbps (uplink).
• PoE Power consumption: Full load = 120W, Idling: 5W.
• Power consumption management: yes.
• PoE PIN Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-).
• Communication standards: IEEE802.3/ IEEE802.3u/ IEEE802.3X/ IEEE 802.3az/ IEEE 802.3ab.
• PoE protocol: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt.
• Switching capacity: 33 Gbps.
• Packet forwarding rate: 16.37 Mpps.
• Packet buffer memory: 1.75 Mbit.
• Long distance PoE: 250 m long distance PoE transmission.
• Application humidity: 5%~95% RH.
• Power supply: 48V - 57V DC.
• Lightning Protection Common Mode: 4 kV.
• Differential mode: 2 kV.
• ESD Protection Air discharge: 8 kV.
• Contact discharge: 6 kV.
• Working temperature: -30°C~65°C.
• Wall-mount installation.
• Anti-theft lock hole.
• Weight: 0.67 kg.
• Dimensions(W×D×H): 150 mm x 110 mm x 42 mm.
