Prekės kodas: 904
Kaina su PVM: € 23.74
Susisiekti dėl likučio
Pirkti



Aprašymas

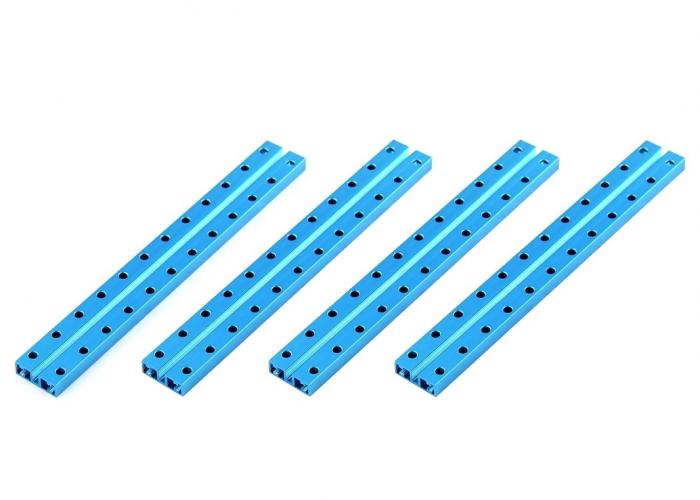

  • One of the most frequently used parts in Makeblock platform,compatible with all makeblock motion and Structure components.
  • Made from 6061 aluminum extrusion, anodized surface. Excellent strength and twist resistance.
  • Threaded slot enables easy and flexible connection.
  • With holes on 16mm increments. and M4 thread holes on both ends.
  • Cross-sectional area 8x24mm, length 192mm.
  • Sold in Packs of 4.

Size Charts(mm)

Demo

The types of Makeblock Beam0824

Type Length(mm) Hole Number - -
Beam0824-064 64 8 Blue Gold
Beam0824-080 80 10 Blue Gold
Beam0824-096 96 12 Blue Gold
Beam0824-112 112 14 Blue Gold
Beam0824-128 128 16 Blue Gold
Beam0824-144 144 18 Blue Gold
Beam0824-160 160 20 Blue Gold
Beam0824-176 176 22 Blue Gold
Beam0824-192 192 24 Blue Gold
Beam0824-496 496 30 Blue Gold
Short Beam 0824 Pack 64,80,96,112,128 8,10,12,14,16 Blue Gold
Medium Beam 0824 Pack 144,160,176,192 18,20,22,24 Blue Gold
